Specifying the Original Size and Scanning Method

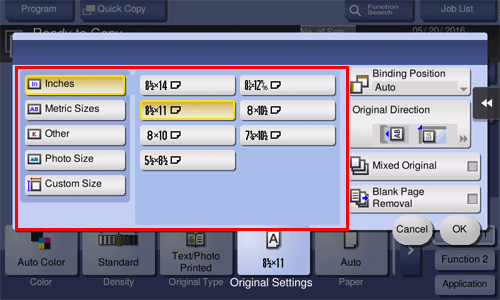

To specify the original size ([Original Size])

To display:

[Copy]
- [Original Settings]
  - [Original Size]

Select the size of the original to be scanned.

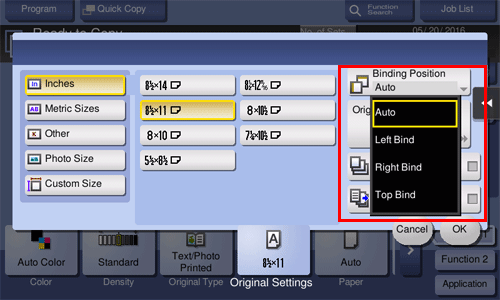

To specify the binding position of the original ([Binding Position])

To display:

[Copy]
- [Original Settings]
  - [Binding Position]

When scanning a 2-sided original, select the original binding position to prevent the binding positions be reversed between the front and rear faces.

Settings	Description
[Auto]	Automatically configures the binding position of the original. When the long side of the original is 11-11/16 inches (297 mm) or less, the binding position is set to the long side of the paper. When the long side of the original exceeds 11-11/16 inches (297 mm), the binding position is set to the short side of the paper.
[Left Bind]	Select this option when the binding position is set to the left of the original.
[Right Bind]	Select this option when the binding position is set to the right of the original.
[Top Bind]	Select this option when the binding position is set to the top of the original.

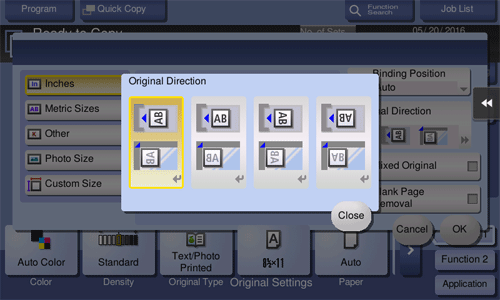

To specify the original loading direction ([Original Direction])

To display:

[Copy]
- [Original Settings]
  - [Original Direction]

Specify the orientation of the loaded original.

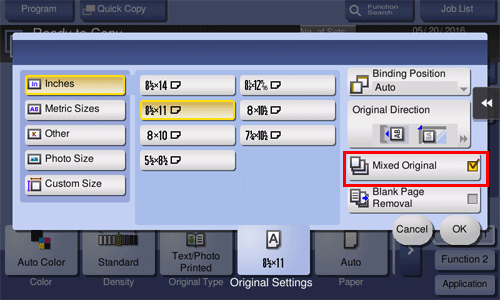

To collectively scan different sized originals using the ADF ([Mixed Original])

To display:

[Copy]
- [Original Settings]
  - [Mixed Original]

Using the ADF allows you to collectively scan the originals of paper sizes 8-1/2 11 and 8-1/2 14, which have the same width.

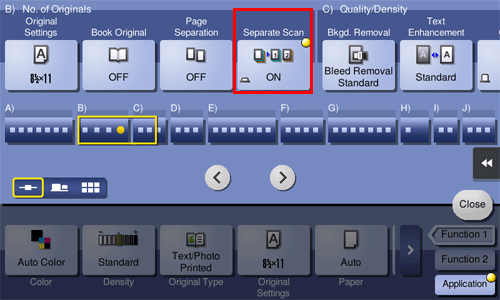

To scan a number of originals as a single job ([Separate Scan])

To display:

[Copy]
- [Application]
  - [No. of Originals]
    - [Separate Scan]

If the number of original sheets is so large that they cannot be loaded into the ADF at the same time, you can load them in several batches and handle them as one job.

You can also scan the original using both ADF and Original Glass alternately.

For details on the operation procedure of Serial Scan, refer to Here.

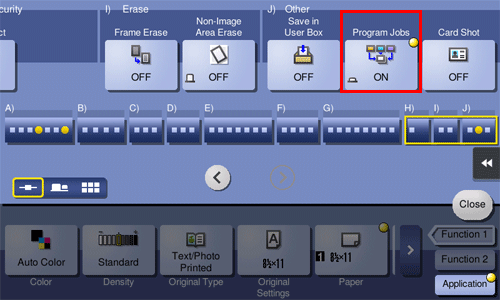

To copy multiple originals in different settings collectively ([Program Jobs])

To display:

[Copy]
- [Application]
  - [Other]
    - [Program Jobs]

Originals are scanned with different settings for each set, and copied collectively. Use this function when various types of originals are mixed, such as 1-sided original to be printed on one side of paper, and 2-sided original to be copied by enlarging.

For details about the operation procedure of [Program Jobs], refer to Here.
