Configuring Scan or Original Settings for Scan Transmission

Configuring the Basic Settings such as Color and Original Size

To select the color mode to scan the original ([Color])

To display:
  • [Scan/Fax]
    • [Color]

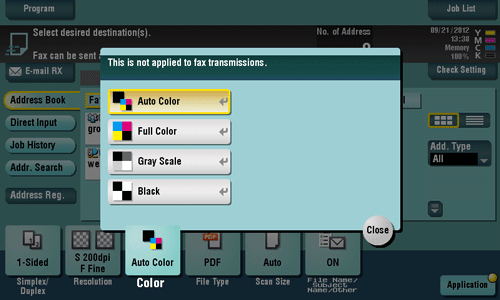

Select the color mode to scan originals.

Settings

Description

[Auto Color]

Scan by automatically selecting either [Full Color] or [Gray Scale] according to the original color.

[Full Color]

Scan in full color, regardless of whether the original is in color or in black and white.

Select this option to scan originals of other than black and white and scanning color photos.

[Gray Scale]

Scan in gray scale, regardless of whether the original is in color or in black and white. Select this option to scan originals with many halftones, such as black and white photos.

[Black]

Scan originals in white and black, no shades of gray.

Select this option to scan originals with distinct black and white areas, such as line drawings.

  • If the original is not properly scanned to fit its color although you have selected [Auto Color], adjust the color judgment level. For details, refer to Here.

To specify the original size ([Scan Size])

To display:
  • [Scan/Fax]
    • [Scan Size]

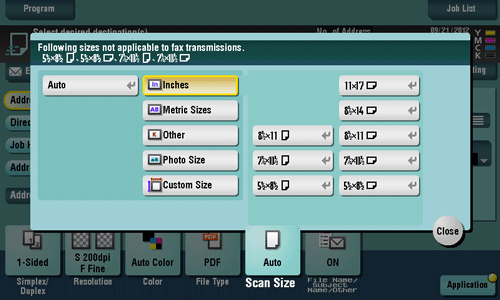

Select the size of the original to be scanned.

Settings

Description

[Auto]

Selects a scan size automatically according to the original, and scans the original.

[Inches]

Select this option to scan an inch-size original. Tap [Inches], and select a standard inch size.

[Metric Sizes]

Select this option to scan a metric-size original. Tap [Metric Sizes], and select the standard metric size respectively.

[Other]

Select this option to scan a postcard (4 6, or A6 Card) or an original other than an inch- or metric- size original. Tapping [Other] allows you to select each standard size.

[Photo Size]

Select this option to scan photos or originals in photo size. Tap [Photo Size], and select a standard size.

[Custom Size]

Select this option to scan originals in custom size. Enter vertical and horizontal values.

To specify the resolution to scan the original ([Resolution])

To display:
  • [Scan/Fax]
    • [Resolution]

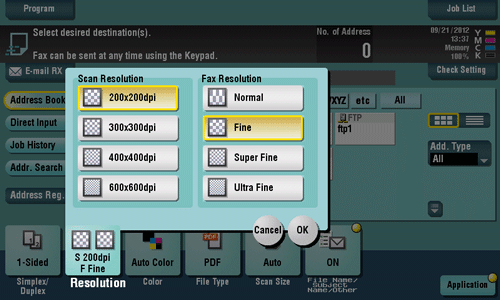

Select the resolution of the original for scanning.

Settings

Description

[Scan Resolution]

Select the resolution of the original for scan transmission.

When using Scan to E-mail, SMB Send, FTP Send, WebDAV Send, or Save in User Box, select the following resolution to scan an original.

  • [200 200 dpi]: Select this option to scan a standard original.

  • [300 300 dpi]: Select this option to scan a standard original with a higher resolution.

  • [400 400 dpi]: Select this option to scan an original containing small characters and drawings.

  • [600 600 dpi]: Select this option to convert an original into a file of the maximum size. This option is available when scanning an original such as a full-color photo, which requires a fine level of image quality.

[Fax Resolution]

Select the resolution of the original for sending a fax.

When using fax transmission, Internet fax transmission, or IP address fax transmission, select the following resolution to scan an original.

  • [Normal]: Select this option to scan originals that do not require a fine level of image quality, or when you want to send a large number of originals quickly.

  • [Fine]: Select this option to scan a standard original.

  • [Super Fine]: Select this option to scan originals containing small characters or drawings.

  • [Ultra Fine]: Select this option to scan originals that require a fine level of image quality.

  • The finer the scan resolution is, the larger the data volume becomes, resulting in longer transmission time. To use an E-mail as a transmission method such as Scan to E-mail or Internet fax transmission, check that the data capacity are not limited.

To specify the file type of the scanned original ([File Type])

To display:
  • [Scan/Fax]
    • [File Type]

Select the file type used for saving the scanned original data.

Settings

Description

[File Type]

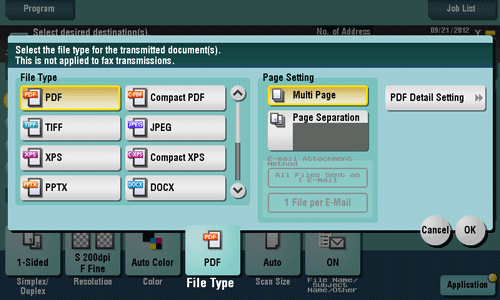

Select the file type to be saved from the following:

  • [PDF]: Most operating systems support this file format. You can specify a password or encrypt the file. Important original data should be saved as a PDF file.

  • [Compact PDF]: Save to a file that has a smaller size than normal PDF format. We recommend this format when you want to reduce file size for sending by E-mail etc.

  • [TIFF]: This is one kind of versatile image formats. This type is available for a multi-page file that provides multiple pages in one file.

  • [JPEG]: A file format widely used in digital cameras. Suitable for saving photo data. This type does not support the saving of multiple pages into one file.

  • [XPS]: A new image file format introduced in Windows Vista.

  • [Compact XPS]: Save to a file that has a smaller size than normal XPS format.

  • [PPTX]: Extension of an XML-base file that is created using PowerPoint of Microsoft Office 2007 or later.

  • [DOCX]: Extension of an XML-base file that is created using Word of Microsoft Office 2007 or later.

  • [XLSX]: Extension of an XML-base file that is created using Excel of Microsoft Office 2007 or later.

[Page Setting]

Select a unit of pages to be saved in a file if the original contains multiple pages.

  • [Multi Page]: Select this option to convert all pages to a single file. However, if [File Type] is set to [JPEG], you cannot select [Multi Page].

  • [Page Separation]: Select this option to divide a file into a specified number of pages for transmission using E-mail, SMB, or FTP transmission. For example, if you enter "2" to scan 10 original pages, the original is divided into five separate files. The specified number of pages is stored and the pages are saved as a single file ([Multi Page]) in a User Box. Pages are converted as a single file by the specified number of pages.

[E-mail Attachment Method]

You can select the E-mail attachment method when [Page Setting] is set to [Page Separation].

  • [All Files Sent as 1 E-mail]: Attaches all files to one E-mail.

  • [1 File per E-Mail]: Attach one file to one E-mail.

[PDF Detail Setting]

If [PDF] or [Compact PDF] is selected for file format, you can configure the PDF option settings.

You can enhance security by attaching a digital signature that identifies the author of the file, by file encryption, etc.

For details, refer to Here.

  • The optional Upgrade Kit UK-204 and i-Option LK-110 are required to specify DOCX or XLSX for the file type.

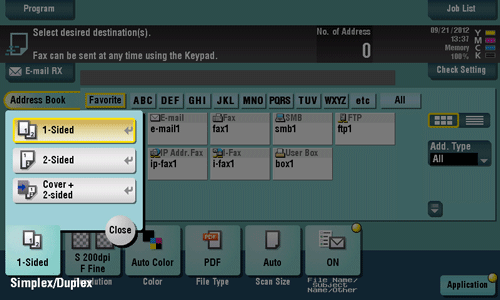

To scan a 2-sided original ([Simplex/Duplex])

To display:
  • [Scan/Fax]
    • [Simplex/Duplex]

Select the surface of the original to be scanned.

Settings

Description

[1-Sided]

Tap this button to scan one side of an original.

[2-Sided]

Tap this button to scan both sides of an original.

[Cover + 2-sided]

Tap this button to scan only one side for the first page in the original, and scan both sides of the remaining pages.

To change the file name of the scanned original ([File Name/Subject Name/Other])

To display:
  • [Scan/Fax]
    • [File Name/Subject Name/Other]

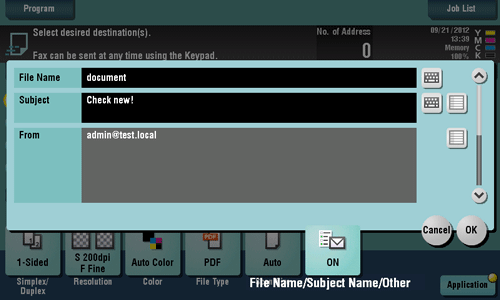

Change the file name of the scanned original.

When sending by E-mail, you can specify the subject and text of the E-mail message and change the sender E-mail address ("From" address).

Settings

Description

[File Name]

If necessary, change the file name of the scanned original.

[Subject]

If necessary, change the subject of the E-mail. If fixed subject phrases are registered, you can select a subject from those registered.

[From]

If necessary, change the sender E-mail address.

In normal circumstances, the E-mail address of the administrator is used as sender E-mail address.

If user authentication is installed on this machine, the E-mail address of the login user is used as sender E-mail address.

[Body]

If necessary, change the message text of the E-mail. If fixed message text phrase is registered, you can select message text from those registered.

  • You can register the fixed subject and text phrase of the E-mail message. For details, refer to Here.

  • You can change the default file name. You can specify whether to add an initial of the function or whether to specify an arbitrary text instead of the device name. For details, refer to Here.

  • Select whether to allow the user to change the sender E-mail address ("From" address) (default: [Allow]). For details, refer to Here.

To change a subject and message text for each E-mail address ([File Name/Subject Name/Other])

To display:
  • [Scan/Fax]
    • [File Name/Subject Name/Other]

Change the file name of the scanned original.

When sending by E-mail, you can specify the subject and text of the E-mail message and change the sender E-mail address ("From" address).

Settings

Description

[File Name]

If necessary, change the file name of the scanned original.

[Subject]

If necessary, change the subject of the E-mail. If fixed subject phrases are registered, you can select a subject from those registered.

[From]

If necessary, change the sender E-mail address.

In normal circumstances, the E-mail address of the administrator is used as sender E-mail address.

If user authentication is installed on this machine, the E-mail address of the login user is used as sender E-mail address.

[Body]

If necessary, change the message text of the E-mail. If fixed message text phrase is registered, you can select message text from those registered.

  • You can register the fixed subject and text phrase of the E-mail message. For details, refer to Here.

  • You can change the default file name. You can specify whether to add an initial of the function or whether to specify an arbitrary text instead of the device name. For details, refer to Here.

  • Select whether to allow the user to change the sender E-mail address ("From" address) (default: [Allow]). For details, refer to Here.

Configuring Settings to Fit Various Types of Originals

To collectively scan originals of different sizes using the ADF([Mixed Original])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Mixed Original]

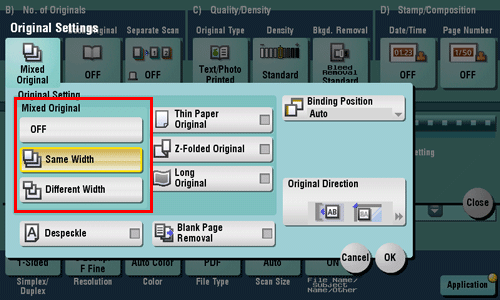

Even for an original with pages of different sizes, by using the ADF, you can scan data while detecting the size of each page. If the widths of the originals are the same, select [Same Width]. If the widths of the originals are different, select [Different Width].

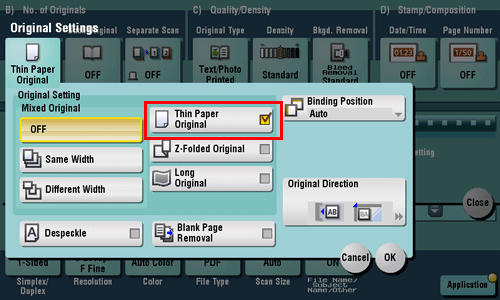

To scan an original that is on paper thinner than plain paper using the ADF ([Thin Paper Original])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Thin Paper Original]

This function reduces the transport speed of the original on the ADF to prevent the original from being caught when scanning an original that is thinner than plain paper.

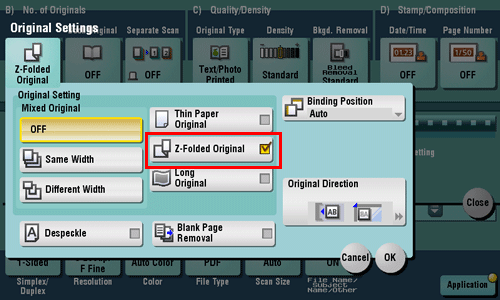

To scan an original with folds using the ADF ([Z-Folded Original])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Z-Folded Original]

Even the original sizes of folded originals can be detected accurately.

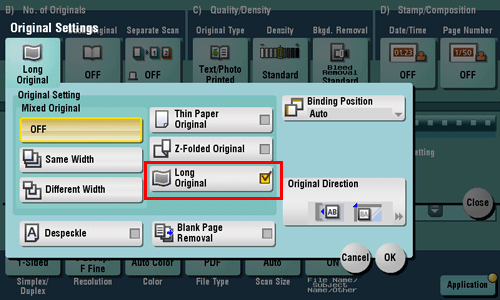

To scan a long original that cannot be loaded on the original glass ([Long Original])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Long Original]

Select this option when loading a long original that is larger in the feeding direction than the full standard size (11 17 or A3).

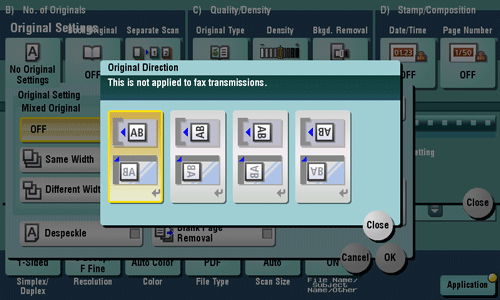

To specify the original loading direction ([Original Direction])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Original Direction]

Specify the orientation of the loaded original.

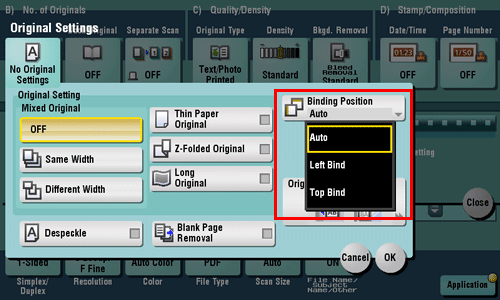

To display a top-binding and double-sided original correctly without reversing an image in the vertical direction ([Binding Position])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Binding Position]

When scanning a 2-sided original, select the original binding position to prevent the binding positions being reversed between the front and rear faces.

Settings

Description

[Auto]

Automatically configures the binding position of the original. A page margin position along the long side of the paper is selected if the original length is 11-11/16 inches (297 mm) or less. A page binding along the short side of the paper is selected if the original length exceeds 11-11/16 inches (297 mm).

[Left Bind]

Select this option when the binding position is set to the left of the original.

[Top Bind]

Select this option when the binding position is set to the top of the original.

To scan an original using the ADF while removing dust on the slit glass ([Despeckle])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]
          • [Despeckle]

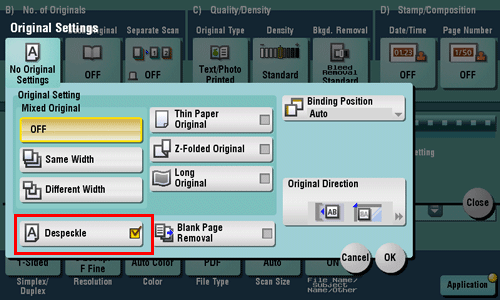

Scan an original using the ADF while removing dust from the Slit Scan Glass.

It takes longer to finish scanning, compared to the normal operation.

To skip blank pages ([Blank Page Removal])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Original Settings]

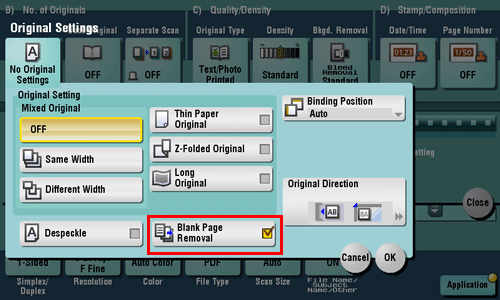

          • [Blank Page Removal]

Blank pages contained in the original loaded into the ADF are skipped when the original is scanned.

Select this check box when scanning an original that contains blank pages. Any blank pages that are detected are not counted as original pages.

  • If blank pages are not detected correctly although [Blank Page Removal] has been specified to scan an original, adjust the level to detect blank pages. For details, refer to Here.

  • The [Blank Page Removal] function cannot be used with the functions by which the size of paper cannot be specified (the [Long Original], [Z-Fold Original], [Mixed Original] functions) simultaneously.

  • When using Fax or Network Fax, [Mixed Original] is automatically specified when sending a fax or network fax, and the [Blank Page Removal] setting will be canceled.

To split the left and right pages of a book or catalog ([Book Original])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Book Original]

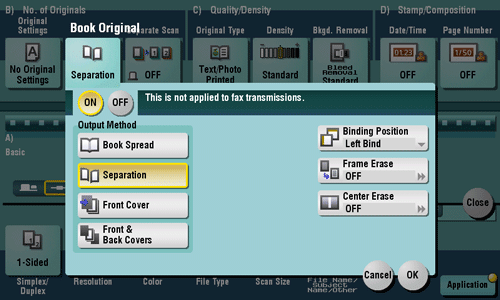

You can scan two-page spreads such as books and catalogs separately into left and right pages, or scan then as one page. If you place a book or catalog on the Original Glass, you do not need to close the ADF to scan it.

Settings

Description

[ON]/[OFF]

Select [ON] to specify Book Original.

[Output Method]

Specify the method to scan a two-page spread.

  • [Book Spread]: Scan a two-page spread as one page.

  • [Separation]: Scan the right and left pages of two-page spreads separately in page number order.

  • [Front Cover]: Scan the front cover and two-page spreads according to the page order of the original (scan in the order of front cover and two-page spreads).

  • [Front & Back Covers]: Scan the front and back covers and two-page spreads according to the page order of the original (scan in the order of front cover, back cover, and two-page spreads).

[Binding Position]

If [Separation], [Front Cover] or [Front & Back Covers] is selected for [Output Method], select the two-page spread binding position.

Select [Left Bind] for two-page spreads of left binding, and [Right Bind] for two-page spreads of right binding.

Note that if the binding position is incorrectly specified, the page order of the two-page spread is reversed between the left- and right-hand pages.

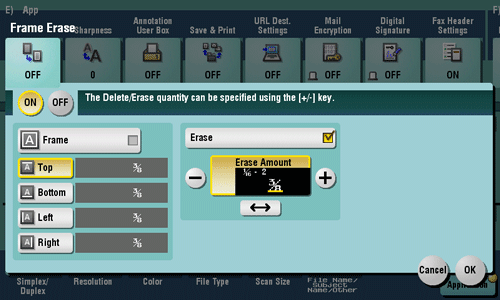

[Frame Erase]

Erases the shadow of the surrounding that is created when the original cover cannot be closed properly due to the thickness of the original.

You can erase the four sides of the original to the same width. Additionally, you can erase the four sides of the original to different widths.

  • [Frame]: Select this option to erase the four sides of the original to the same width. In [Erase Amount], tap [+]/[-] for the inch area, tap [+]/[-] or Keypad for the centimeter area to specify the width of the area to be erased. Tap the input area for the numeral to display the Keypad.

  • [Top]/[Bottom]/[Left]/[Right]: Select this option to erase the four sides of the original by specifying different widths for different sides. Clear the [Frame] check box, select a side ([Top], [Bottom], [Left] or [Right]) and specify the width of the area in [Erase Amount] by tapping [+]/[-] for an inch area and by tapping [+]/[-] or Keypad for a centimeter area. To display the Keypad, tap the input area for the numeral.
    If you do not want to erase the side, cancel the setting for [Erase].

[Center Erase]

Erases the shadow created in the center when the original cover cannot be closed correctly due to the thickness of the original.

Specify the width of the area to erase by tapping [+]/[-] for the inch area and by tapping [+]/[-] or Keypad for the centimeter area. To display the Keypad, tap the input area for the numeral.

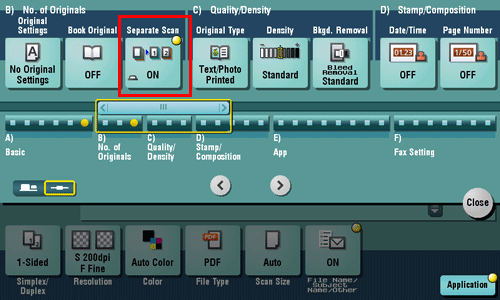

To scan a number of originals as a single job ([Separate Scan])

To display:
  • [Scan/Fax]
    • [Application]
      • [No. of Originals]
        • [Separate Scan]

If the number of original sheets is so large that they cannot be loaded into the ADF at the same time, you can load them in several batches and handle them as one job.

You can also scan the original using both ADF and Original Glass alternately.

  • For details on the operation procedure of Serial Scan, refer to Here.

Adjusting the Image Quality or Density

To automatically adjust to the appropriate image quality for the contents of the original ([Original Type])

To display:
  • [Scan/Fax]
    • [Application]
      • [Quality/Density]
        • [Original Type]

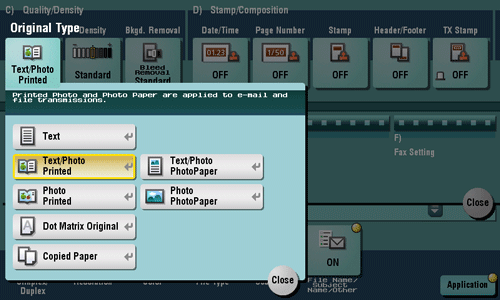

Select the appropriate image quality level for the original and scan at the optimal level of image quality.

Settings

Description

[Text]

Tap this button to scan an original that consists primarily of text at the optimum level of image quality.

Sharpen the edges of text to improve legibility.

[Text/Photo Printed]

Tap this button to scan an original containing of text and photos at the optimum level of image quality.

Sharpen the edges of text, and smoothen photos.

Select this option to scan printed originals such as brochures and catalogs.

[Text/Photo PhotoPaper]

Tap this button to scan an original consisting primarily of text and photos at the optimum image quality level.

Sharpen the edges of text, and smoothen photos.

Select this option to scan originals in that include photos printed on photographic paper.

[Photo Printed]

Tap this button to scan an original consisting of only photos at the optimum image quality level. Select this option to scan printed originals such as brochures and catalogs.

[Photo PhotoPaper]

Tap this button to scan an original consisting of only photos at the optimum image quality level. Select this option to scan originals printed on photographic paper.

[Dot Matrix Original]

Tap this button to scan an original that consists primarily of thin or faint text at the optimum level of image quality.

Darken the text to improve legibility.

[Copied Paper]

Tap this button to scan originals containing uniform density and that are printed on copier or printer, at the optimum level of image quality.

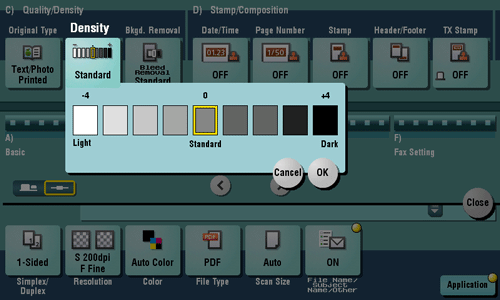

To adjust the density to scan the original ([Density])

To display:
  • [Scan/Fax]
    • [Application]
      • [Quality/Density]
        • [Density]

Scan originals by adjusting the density according to the original.

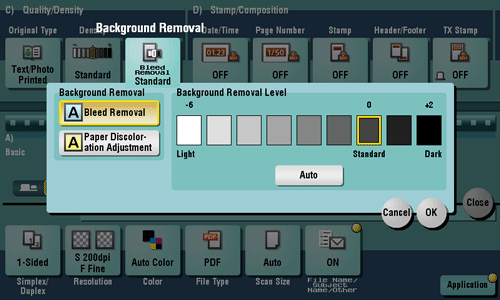

To adjust the background density of the original ([Bkgd. Removal])

To display:
  • [Scan/Fax]
    • [Application]
      • [Quality/Density]
        • [Bkgd. Removal]

Adjust the density of the original with a colored background (newspaper, recycle paper, etc.) or the background of an original that is so thin that text or images on the back would also be scanned.

Settings

Description

[Background Removal]

Tap this button to scan a thin 2-sided original or an original with a colored background at the optimal level of image quality.

  • [Bleed Removal]: Select this option to prevent bleeding of the back of the paper when printing a 2-sided original that is so thin that the contents of the back side would be scanned.

  • [Paper Discoloration Adjustment]: Select this option to scan an original with a colored background such as a map.

[Background Removal Level]

Tap this button to adjust the density of the background color for an original that has a colored background. Selecting [Auto] automatically determines the density of the background color, and scans an original at the optimum background density level.

Adding Stamp or Page Number

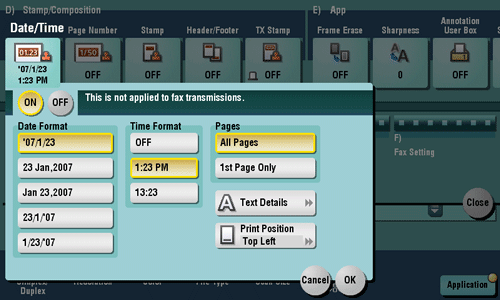

To add the date/time ([Date/Time])

To display:
  • [Scan/Fax]
    • [Application]
      • [Stamp/Composition]
        • [Date/Time]

Select the stamping position and representation, and add the date and time the original is scanned. The date and time can either be printed on all pages or only on the first page.

Settings

Description

[ON]/[OFF]

Select [ON] to print the date/time.

[Date Format]

Select the date/time format.

[Time Format]

Select the time format. If you do not want to print time, select [OFF].

[Pages]

Select the range of pages to print.

[Text Details]

If necessary, select the print size, font, and text color.

[Print Position]

If necessary, select the print position of the text. You can more finely adjust the print position in [Adjust Position].

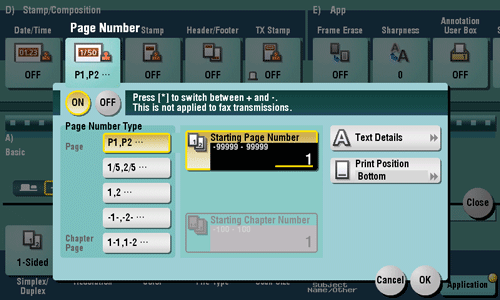

To add a page number ([Page Number])

To display:
  • [Scan/Fax]
    • [Application]
      • [Stamp/Composition]
        • [Page Number]

Select the stamping position and format, and add page and chapter numbers. Page and chapter numbers are printed on all pages.

Settings

Description

[ON]/[OFF]

Select [ON] to print page numbers.

[Page Number Type]

Select the format of the page number.

[Starting Page Number]

Enter the starting page number to be printed on the first page using the Keypad. To display the Keypad, tap the input area for the numeral. For example, to print page numbers from the third page of the original, enter "-1". The first page of the original is counted as "-1", and the second page as "0", and the third page is counted as "1". In [Starting Page Number], a page number is printed on pages 1 and later. If "2" is entered, page numbers are printed from the first page of the original as "2, 3", etc. in order. The "-" (minus sign) changes to + each time you tap [*].

[Starting Chapter Number]

Enter the starting chapter number if an original is divided into chapters, and you want to print chapter numbers from the second chapter using the Keypad. To display the Keypad, tap the input area for the numeral. You can specify chapter numbers only when you have selected [Chapter Page] in [Page Number Type].

[Text Details]

If necessary, select the print size, font, and text color.

[Print Position]

If necessary, select the print position of the text. You can more finely adjust the print position in [Adjust Position].

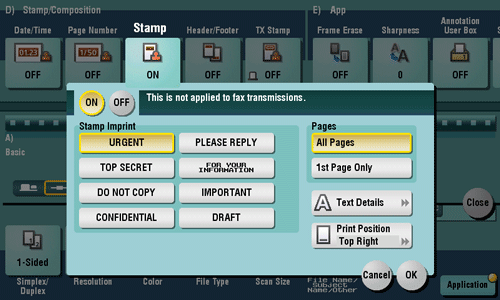

To add a stamp ([Stamp])

To display:
  • [Scan/Fax]
    • [Application]
      • [Stamp/Composition]
        • [Stamp]

Text such as "PLEASE REPLY" and "DO NOT COPY" are printed on the first page or all pages. You can select the text to be added from the registered fix stamps and arbitrary registered stamps.

Settings

Description

[ON]/[OFF]

Select [ON] to print a stamp.

[Stamp Imprint]

Select the stamp you want to print.

[Pages]

Select the range of pages to print.

[Text Details]

If necessary, select the print size and text color.

[Print Position]

If necessary, select the print position of the text. You can more finely adjust the print position in [Adjust Position].

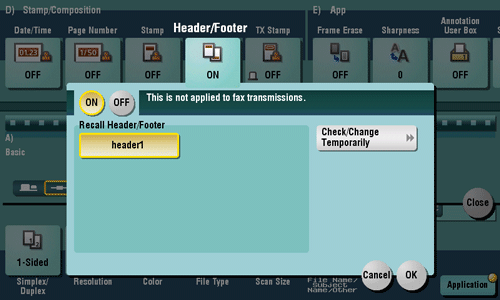

To add information to the header or footer ([Header/Footer])

To display:
  • [Scan/Fax]
    • [Application]
      • [Stamp/Composition]
        • [Header/Footer]

Add the date, time, and any arbitrary text in the top and bottom margins (header/footer) of the specified page. You must register the information to be added to the header and footer on this machine in advance.

Settings

Description

[ON]/[OFF]

Select [ON] to print the header/footer.

[Recall Header/Footer]

Select the header/footer to be printed. Select the header/footer from those registered in advance.

[Check/Change Temporarily]

If necessary, check or temporarily change the details of the program that is selected in [Recall Header/Footer].

  • [Header Setting]: Change the content of the header.

  • [Footer Setting]: Change the content of the footer.

  • [Pages]: Change the range of pages to print.

  • [Text Details]: Change the print size, font, and text color.

  • For details on how to register the information to be added to the header and footer, refer to Here.

Other option settings

To scan after erasing text and shadows in the margins of an original ([Frame Erase])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Frame Erase]

Erases the four sides of the original by the same width amount. You can also erase the four sides of the original to different widths.

Settings

Description

[ON]/[OFF]

Select [ON] to specify Frame Erase.

[Frame]

Select this option to erase the four sides of the original to the same width.

In [Erase Amount], tap [+]/[-] for the inch area, tap [+]/[-] or Keypad for the centimeter area to specify the width of the area to be erased. Tap the input area for the numeral to display the Keypad.

[Top]/[Bottom]/[Left]/[Right]

Select this option to erase the four sides of the original to different widths.

Clear the [Frame] check box, select a side ([Top], [Bottom], [Left] or [Right]) and specify the width of the area in [Erase Amount] by tapping [+]/[-] for an inch area and by tapping [+]/[-] or Keypad for a centimeter area. To display the Keypad, tap the input area for the numeral.

If you do not want to erase the side, cancel the setting for [Erase].

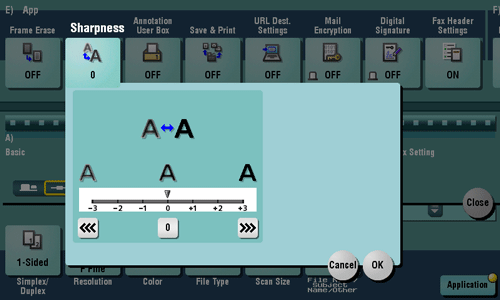

To sharpen the border between text ([Sharpness])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Sharpness]

Sharpen the edges of the image to improve legibility. Smoothen rough contours of an image or sharpen blurred image.

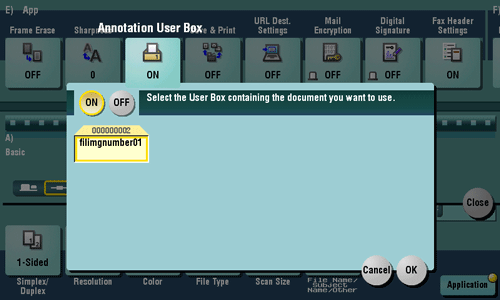

To add a filing number to original data ([Annotation User Box])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Annotation User Box]

Annotation User Box is a box in which the function to add filing numbers to the saved original data for each job or page.

If Annotation User Box is selected, originals are sent by adding a filing number.

  • To use the Annotation User Box, it must be registered in advance. For details on how to register, refer to Here.

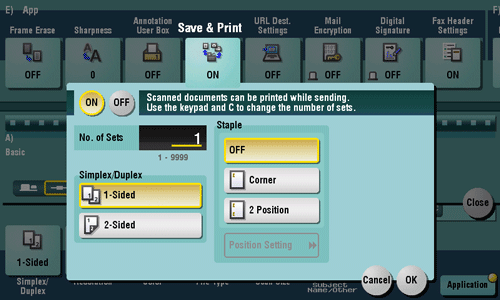

To print on this machine simultaneously with sending ([Save & Print])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Save & Print]

You can print data simultaneously with Scan or Fax TX.

Settings

Description

[ON]/[OFF]

Select [ON] to send and print at the same time.

[No. of Sets]

If necessary, enter the number of copies to print.

[Simplex/Duplex]

Select [2-Sided] to print on both sides of sheets of paper.

[Staple]

Select the binding positions for sheet stapling.

  • [Corner]: Each set of printed sheets is stapled in one corner before it is output.

  • [2 Position]: Each set of printed sheets is stapled at two positions (in the top, left, or right) before it is output.

  • [Position Setting]: Select the binding position. If [Auto] is specified for the binding position, the binding position is determined automatically.

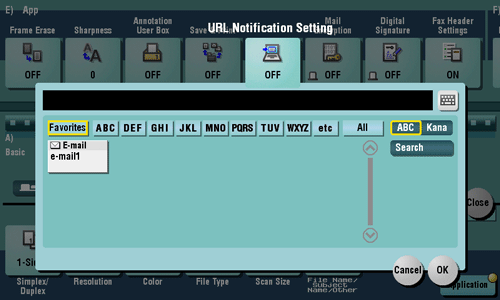

To notify where to save the sent original data by E-mail ([URL Dest. Setting])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [URL Dest. Settings]

Send an E-mail, which contains a destination specifying where to save original data, to a specified E-mail address after SMB Send, FTP Send, WebDAV Send, or Save in User Box has been ended.

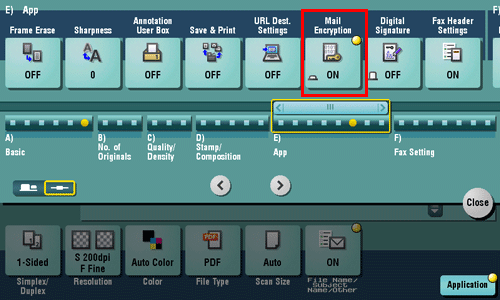

To encrypt E-mails ([Mail Encryption])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Mail Encryption]

Encrypt an E-mail to be sent from this machine when using S/MIME.

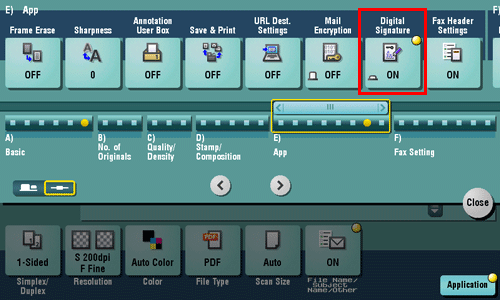

To add a digital signature to an E-mail ([Digital Signature])

To display:
  • [Scan/Fax]
    • [Application]
      • [App]
        • [Digital Signature]

Add a digital signature to an E-mail to be sent from this machine when using S/MIME.

  • If you cannot change the [ON] or [OFF] state, it is assumed that whether or not a digital signature is always added is specified by the administrator.
