Checking the Name and Function of Each Part in This Machine

1

Control Panel

Used to configure various settings in this machine.

2

Automatic Document Feeder

Automatically feeds and scans originals by page. This unit also reverses and automatically scans 2-sided originals.

This unit is referred to as ADF in the manual.

2-a

ADF Feed Cover

Open this cover when clearing a paper jam in the ADF.

2-b

Lateral Guide

Adjust this guide along the width of the original.

2-c

Original Tray

Load the original face up in this tray.

2-d

Original Output Tray

The scanned original is fed out onto this tray.

2-e

Document Stopper

Used to prevent the output original from falling.

3

USB Port (Type A) USB2.0/1.1

Used to connect an external memory unit (USB memory unit) to this machine.

4

Bypass Tray

Used to print data on non-standard size paper or envelopes.

For details on the available types of paper, refer to Here.

5

Tray1

Allows you to load up to 550 sheets.

For details on the available types of paper, refer to Here.

6

Data Indicator

Flashes or lights up to indicate the data receiving status on this machine.

For details, refer to Here.

7

Output Tray

Outputs printed pages.

bizhub C3851FS is equipped with the Finisher. For details, refer to Here.

1

Scanner Lock Lever

Used to lock or unlock the scanner.

To use this machine, unlock the scanner.

2

Original Glass

Used to load the original.

3

Slit Scan Glass

Used to scan an original image when using the ADF.

This unit is referred to as a Slit Scan Glass or Original Scan Glass in the manual.

4

Original Cover Pad

Fixes the loaded originals.

1

Power Switch

Press this switch to turn the machine on or off.

2

Power Connection

Connect the power cord to this inlet to supply power to this machine.

3

USB Port (Type B)

Connect to this port when using this machine as a USB-connected printer.

4

Ethernet (LAN) Port (1000Base-T/100Base-TX/10Base-T)

Connect to this port when using this machine as a network printer or network scanner.

5

LINE (telephone line) Jack

Used to connect a general telephone subscriber line.

6

Jack for connecting a telephone (TEL)

Used to connect a telephone cord.

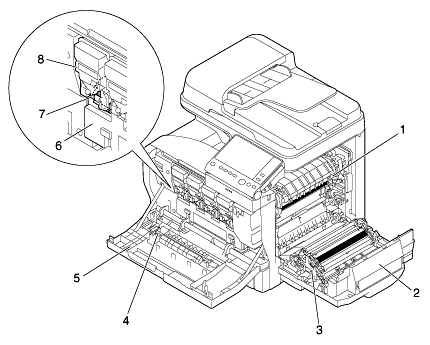

1

Fusing Unit

Used to fuse toner to paper using heat and pressure.

2

Right Door

Open this door to clear a paper jam.

3

Paper Transport Unit

Transports paper. When performing 2-sided printing, this unit reverses paper.

4

Laser Lens Cleaning Tool

Clean the surface of the Print Head Glass.

5

Front Door

Open this door to replace the Toner Cartridge, Imaging Unit, or Waste Toner Bottle, and to clean the Laser Lens.

6

Waste Toner Bottle

Used to collect used waste toners.

7

Imaging Unit

Used to create a print image.

8

Toner Cartridge

This machine provides Toner Cartridge in four colors: cyan (C), magenta (M), yellow (Y), and black (K). A full-color image is created by combining the four toner colors.

1

Main Tray

Outputs printed pages.

2

Processing Tray

Used to conduct stapling. Also, this tray is used to output the printed sheets to the Main Tray.
