[Print] Window of the Printer Driver

How to display the [Print] window

  1. Open document data using the application software. From the [File] menu, select [Print].

  2. Check that the desired printer is selected in [Printer:].

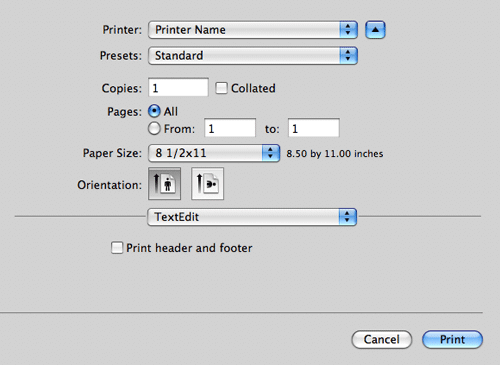

    The [Copies & Pages] window appears.

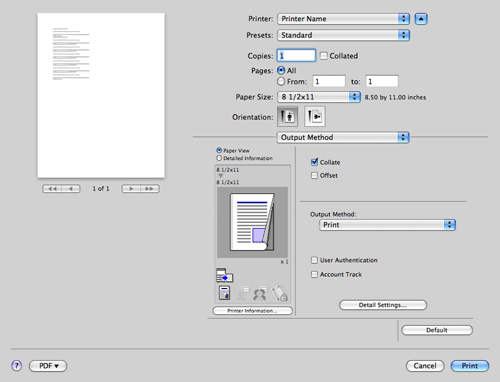

Items common to each window

This section describes the settings and buttons common to the [Print] window.

Mac OS X 10.5/10.6/10.7/10.8/10.9:

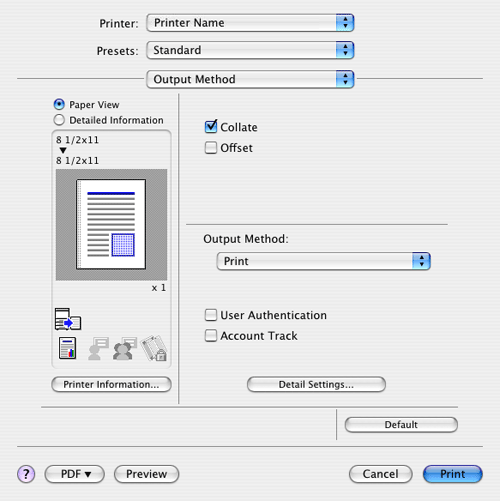

Mac OS X 10.4:

Settings

Description

[Paper View]

Displays the sample page layout based on current settings for checking the print result image.

[Detailed Information]

Displays the current settings in text.

[Printer Information...]

Displays the installation option status. This button is enabled only when your computer can communicate with this machine.

This function is not available when the sandbox-compatible application is used in Mac OS X 10.9.

[Default]

Reverts the settings to their default values.

[Cancel]

Discards (or cancels) the current changes and closes the setup window.

[Print]

Applies the changes made to the settings and starts printing.
