Paper Jam in Large Capacity Unit (Only for bizhub C554e/C454e)

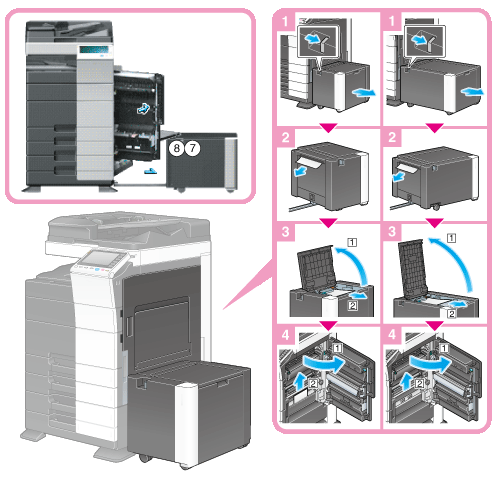

  • The figure above shows the Large Capacity Unit LU-301 installed.

  • Be careful not to touch the surface of the roller with your hand.

  • The area around the fusing unit is hot. To avoid a burn injury, be careful not to touch any parts except for the specified knob and dial.

  • In case your hand or any other part of your body comes in contact with the heated section, immediately run it under cold water and seek medical assistance.

  • Carry out this work carefully so that you keep the inside of the machine, your clothing and hands free from toner contamination.

  • If any toner does get on your hand, wash it off using water or neutral detergent.

  • If any toner gets into your eyes, immediately wash it out with water and consult your doctor.
