Setting up the Operating Environment

Installing IC CardDriver (USB-Driver) (Windows 7/8/8.1)

To use Data Administrator, set up the operating environment after configuring authentication settings of this machine.

For setup, install the IC CardDriver (USB-Driver) of the authentication unit, then install Data Administrator PlugIn for IC Card Authentication Unit AU-201.

  • Before setup, install Data Administrator V4.1.31000 or later in your computer. For details on installation, refer to the relevant Data Administrator manual.

  • To check the version of your Data Administrator, select the [Help] menu in Data Administrator, and also select [Version Information] - [Plug-in version].

  • The latest IC CardDriver (USB-Driver) can be downloaded from our Web site.

  1. Turn the Main Power Switch of this machine off, and disconnect the authentication unit from this machine.

  2. Install IC CardDriver (USB-Driver).

    • Connect the authentication unit to the USB port of your computer.

    • When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be damaged or a failure may occur.

    • Do not connect another USB device to the same port as for the authentication unit. Doing so reduces the USB power supply, resulting in an operation failure.

    • To use the USB hub, connect the self-power USB hub that supplies 500 mA or more.

  3. Open the [Devices and Printers] window.

    • In Windows 8.1, click [] in the Start window, then click [Control Panel] - [Hardware and Sound] - [View devices and printers].

    • In Windows 8, right-click the Start window, then click [All apps] - [Control Panel] - [Hardware and Sound] - [View devices and printers].

    • In Windows 7, open the Start menu, then click [Devices and Printers]. If [Devices and Printers] is not displayed, select [Control Panel] - [Hardware and Sound], and click [View devices and printers].

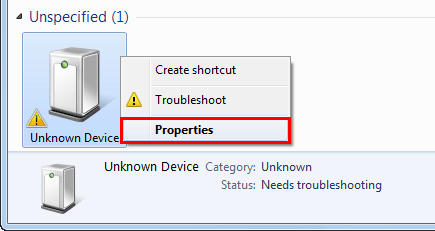

  4. Right-click the device name or [Unknown Device] of the authentication unit displayed in the [Unspecified] category, then click [Properties].

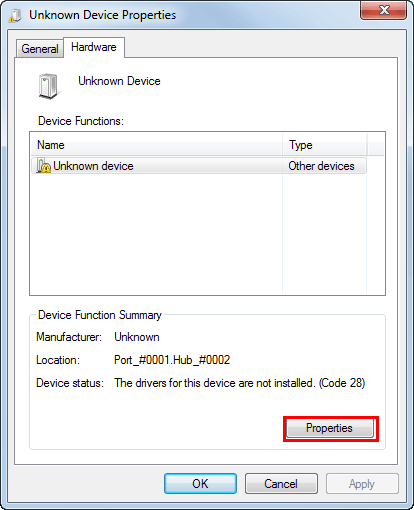

  5. In the [Hardware] tab, click [Properties].

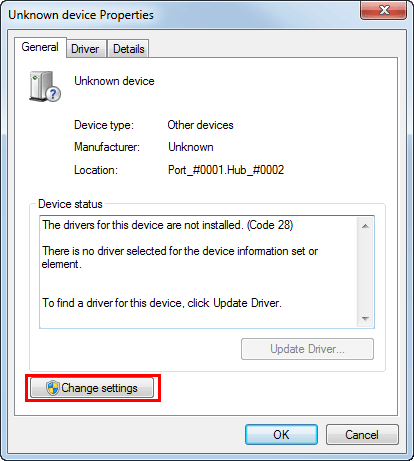

  6. In the [General] tab, click [Change settings].

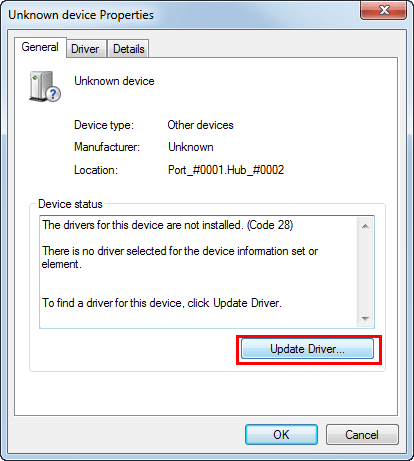

  7. Click [Update Driver...].

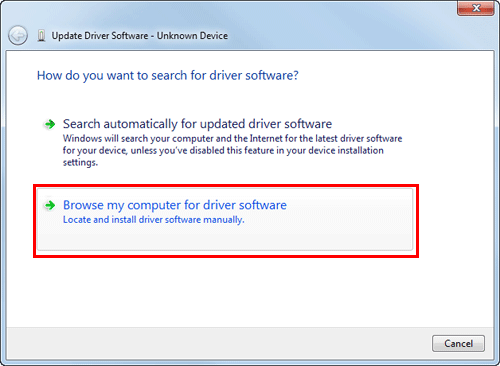

  8. In the screen in which to select how to search the driver software, click [Browse my computer for driver software].

  9. Click [Browse...].

  10. Select the IC CardDriver (USB-Driver) file in the computer, then click [OK].

  11. Click [Next], and perform the procedure by following the on-screen instructions.

    • If the [Windows Security] dialog box for verifying the publisher appears, click [Install this driver software anyway].

  12. When the installation is complete, click [Close].

    Then, install Data Administrator PlugIn for IC Card Authentication Unit AU-201. Refer to Here.

Installing IC CardDriver (USB-Driver) (Windows Vista)

To use Data Administrator, set up the operating environment after configuring authentication settings of this machine.

For setup, install the IC CardDriver (USB-Driver) of the authentication unit, then install Data Administrator PlugIn for IC Card Authentication Unit AU-201.

  • Before setup, install Data Administrator V4.1.31000 or later in your computer. For details about installation, refer to the relevant Data Administrator manual.

  • To check the version of your Data Administrator, select the [Help] menu in Data Administrator, and also select [Version Information] - [Plug-in version].

  • The latest IC CardDriver (USB-Driver) can be downloaded from our Web site.

  1. Turn the Main Power Switch of this machine off, and disconnect the authentication unit from this machine.

  2. Install IC CardDriver (USB-Driver).

    • Connect the authentication unit to the USB port of your computer.

    The [Found New Hardware] dialog box appears.

    • When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be damaged or a failure may occur.

    • Do not connect another USB device to the same port as for the authentication unit. Doing so reduces the USB power supply, resulting in an operation failure.

    • To use the USB hub, connect the self-power USB hub that supplies 500 mA or more.

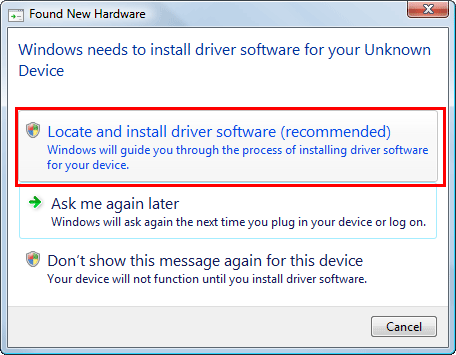

  3. Select [Locate and install driver software (recommended)].

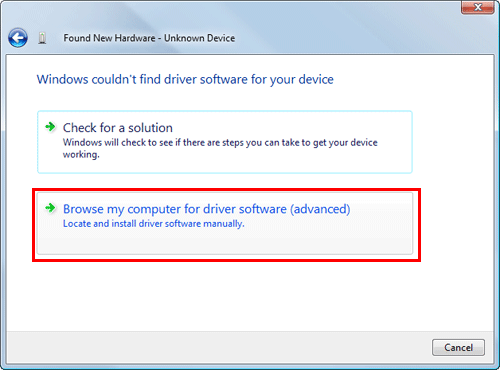

  4. Click [Browse my computer for driver software (advanced)].

  5. Click [Browse...].

  6. Select the IC CardDriver (USB-Driver) file in the computer, then click [OK].

  7. Click [Next], and perform the procedure by following the on-screen instructions.

    • If the [Windows Security] dialog box for verifying the publisher appears, click [Install this driver software anyway].

  8. When the installation is complete, click [Close].

    Then, install Data Administrator PlugIn for IC Card Authentication Unit AU-201. Refer to Here.

Installing Data Administrator PlugIn for IC Card Authentication Unit AU-201

  • The latest Data Administrator PlugIn can be downloaded from our Web site.

  1. Click setup.exe of Data Administrator PlugIn.

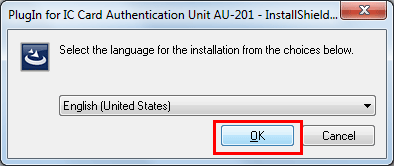

  2. When necessary, select the setup language, and click [OK].

  3. Follow the on-screen instructions to proceed with the installation.

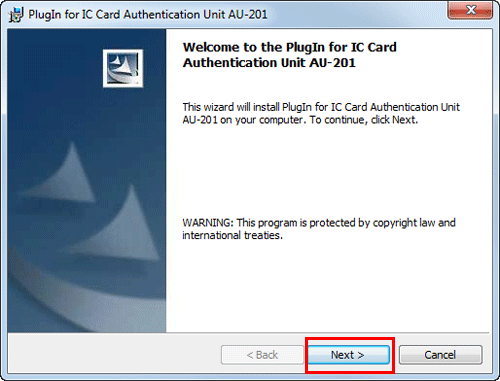

  4. Click [Next].

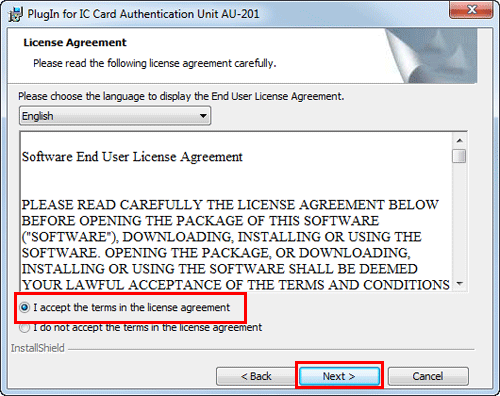

  5. Select [I accept the terms in the license agreement], and then click [Next].

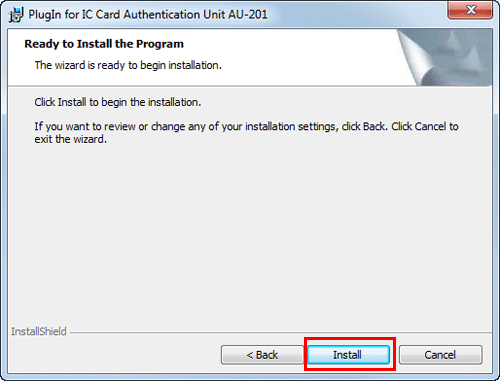

  6. Click [Install].

  7. When the installation is complete, click [Finish].

    This completes the installation of Data Administrator PlugIn for IC Card Authentication Unit AU-201, which completes the setup.
