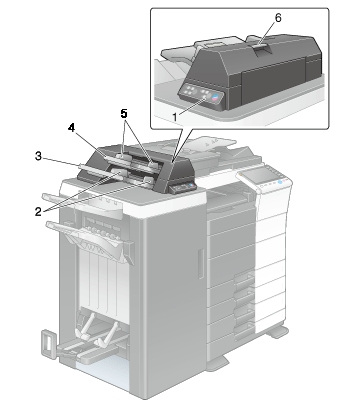

Name and Function of Each Part
No. | Name | Description |
|---|---|---|
1 | Post Inserter Control Panel | Operate this panel when manually using the finisher. For details on the operation procedure of the post inserter, refer to Here. |
2 | Lower Tray Paper Guide | When cover paper is loaded, slide this guide to align with the paper size. |
3 | Lower Tray | Load cover paper into this tray. |
4 | Upper Tray | Load cover paper into this tray. |
5 | Upper Tray Paper Guide | When cover paper is loaded, slide this guide to align with the paper size. |
6 | Upper Unit Release Lever | When clearing a paper jam, rise this lever, and slide the upper unit to the left. |
