Checking the Finish before Sending

  1. Load the original.

  2. Tap [Scan/Fax].

  3. Specify the destination.

  4. Configure the option settings for fax transmission as necessary.

  5. Tap [Preview].

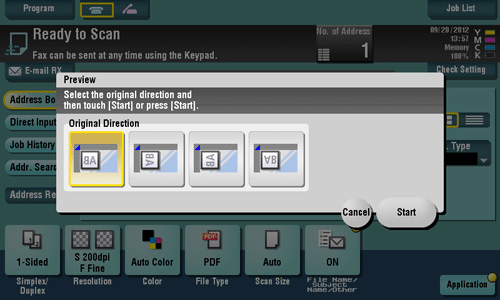

  6. Select the original direction.

    • When the original is loaded into the ADF:

    • When the original is loaded onto the Original Glass:

  7. Tap [Start] or press the Start key.

    The original is scanned, and the Preview screen appears.

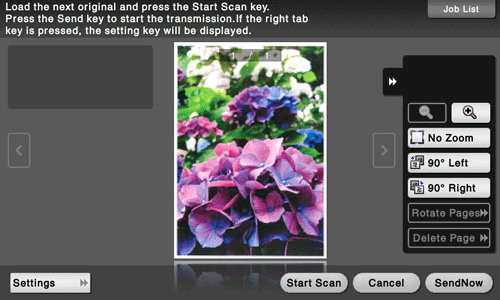

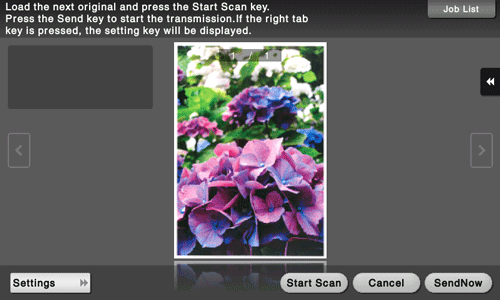

  8. Check the preview display, and rotate the page or change settings as required.

    • To continue to scan originals, load the original, and tap [Start Scan].

    • To start a transmission, tap [Send Now] or press the Start key.

    • Tapping displays Utility keys to allow you to rotate or delete a page.

  9. After all originals are scanned, tap [Send Now] or press the Start key.

    Transmission begins.

  • Normally, preview images are displayed after all the original data has been scanned. When necessary, you can use the real-time preview, which displays preview images on a page basis while scanning the originals (default: [OFF]). For details, refer to Here.

  • You can select whether to display the screen to select the original loading direction (default: [ON]) after tapping [Preview]. For details, refer to Here.

  • You can select conditions to display a preview image (default: [Preview Settings Screen]). For details, refer to Here.
