Printer Cable Connection to This Machine

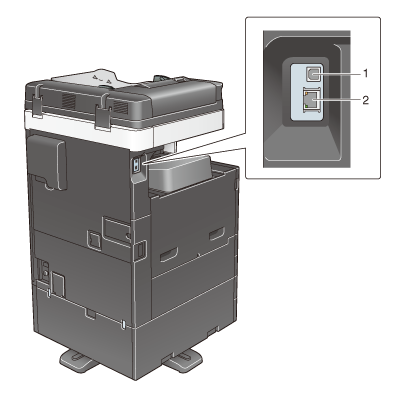

The printer cables are connected to each port on this machine.

No.

Port

Description

1

USB port

Use a USB interface cable for USB connection.

Use a type A (4-pin, male) to type B (4-pin, male) USB cable. A USB cable measuring three meters or less is recommended.

2

Ethernet port (1000Base-T/100Base-TX/10Base-T)

Use the LAN cable to connect this machine to the network. This machine supports the 1000Base-T, 100Base-TX and 10Base-T protocols.

The TCP/IP (LPD/LPR, IPP and SMB) protocols and Web services are supported.
