Sending
Sending (basic operation flow)
This section explains how to perform the scan/fax transmission when using the Enlarge Display function.

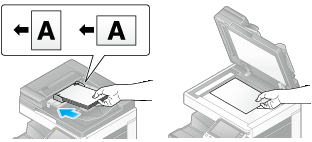

Load the original.
Tap [Scan/Fax].
Tap [Enlarge Display].

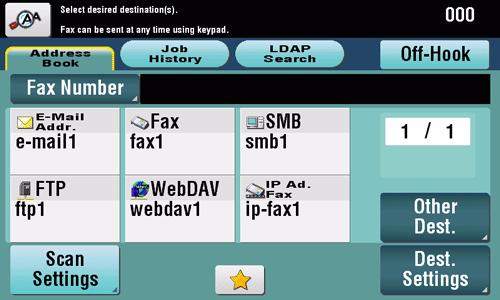

Specify the destination.
For details on how to specify a destination, refer to Here.
If [Dest. Settings] is tapped, you can view the list of the selected destinations.

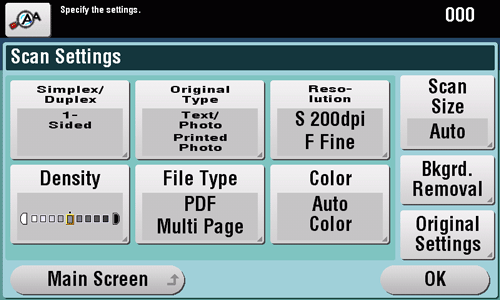

When necessary, tap [Scan Settings] to configure option settings of the scan/fax transmission.
For details on option settings, refer to Here.
To specify a destination or option again, press Reset.
Press the Start key.
Sending starts.
If you press the Stop key while scanning an original, the scanning process stops, and a list of stopped jobs appears. To cancel scanning the original, delete inactive jobs from the list.
If necessary, you can change or specify the default values of Enlarge Display. For details, refer to Here.
Recalling the scan/fax program for transmission
The scan/fax program contains a combination of commonly-used settings as one recall key. For transmission, recall the scan/fax program with a single touch of a button on the main screen of Enlarge Display.
The scan/fax program must be registered on the normal screen in advance. For details on how to register, refer to Here.
Load the original.
Tap [Scan/Fax].
Tap [Enlarge Display].

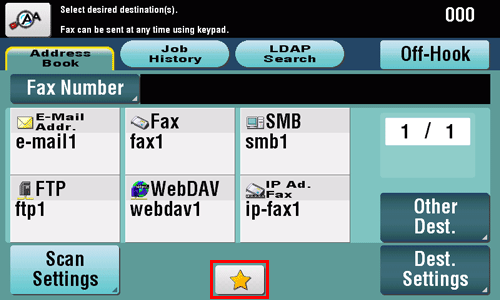

Tap the icon to recall the program.

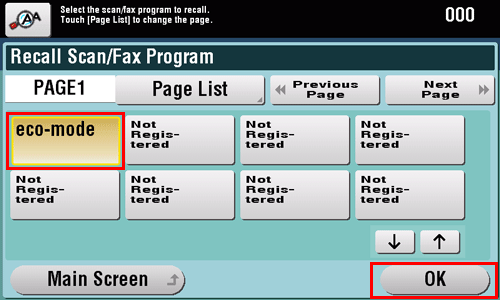

Select the program you want to recall, then tap [OK].
The registered content of the program is applied.
Specify a destination if no destination is registered in Program.
For details on how to specify a destination, refer to Here.
Press the Start key.
Sending starts.
If you press the Stop key while scanning an original, the scanning process stops, and a list of stopped jobs appears. To cancel scanning of the original, delete inactive jobs from the list.
